防尘圈 NRDF——批量代加工

防尘圈 NRDF——批量代加工

标准聚氨酯弹性体制品注塑密封密封行业

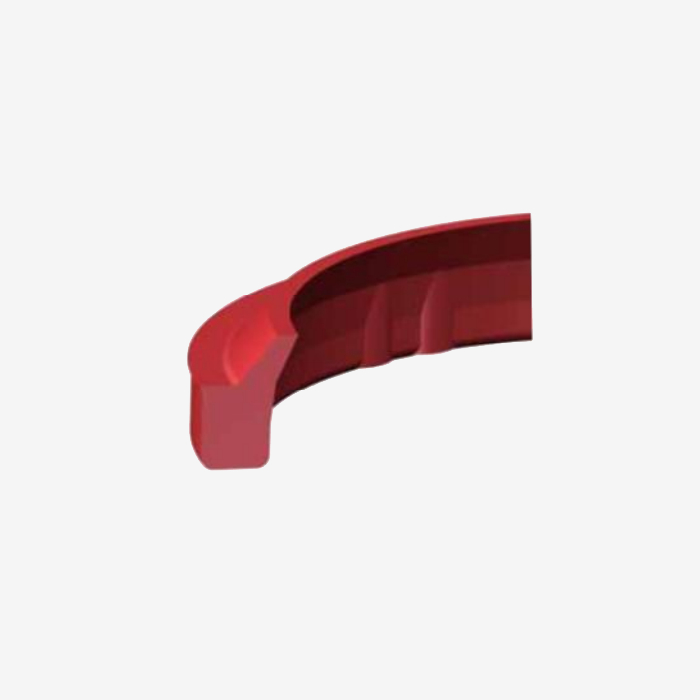

NRDF单唇防尘圈设计用于公制沟槽，包括符合ISO6195标准。防尘唇紧密贴合活塞杆，可以刮除重度污染物，如泥浆和冰等。有TPE和PU两种材料可选。

13812629606

微信同号，欢迎垂询

产品介绍

NRDF单唇防尘圈设计用于公制沟槽，包括符合ISO6195标准。防尘唇紧密贴合活塞杆，可以刮除重度污染物，如泥浆和冰等。在活塞杆静止和往复运动期间，它能有效防止灰尘、污物、沙粒及金属屑进入密封系统，避免油缸内密封圈、导向环和其他密封元件异常磨损，延长密封件的使用寿命。

材料与性能

针对此系列产品本公司有热塑性弹性体TPE和聚氨酯PU两种材料，可针对需要选择。

材料代号：E 代表热塑性弹性体TPE，U 代表聚氨酯PU。

产品优点

脊柱泄压和提高稳定性
有效的防尘唇可以刮除重度污染物，包括冰
容易安装
沟槽设计简单，便于加工
便于安装和拆卸

订货示例

备注：材料代号E代表热塑性弹性体TPE 材料代号U代表聚氨酯PU

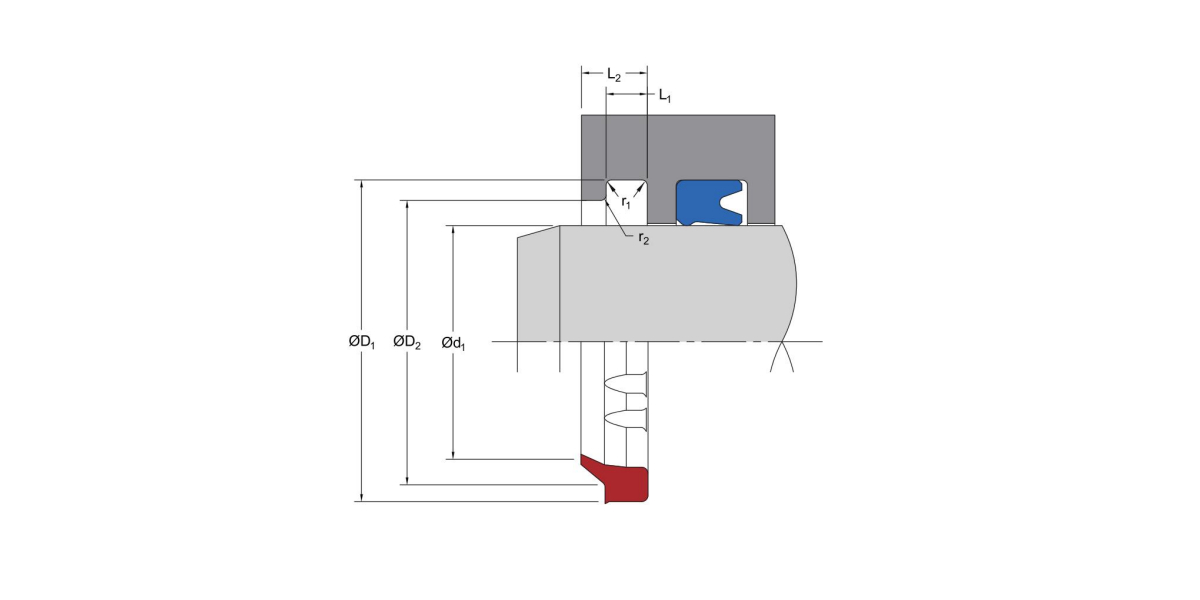

尺寸规格表（第82页）

d1	D1	D2	L1	L2	订货号
20	28	25.5	5	8	NRDF000200
22	30	27.5	5	8	NRDF000220
25	33	30.5	5	8	NRDF000250
28	36	33.5	5	8	NRDF000280
30	38	35.5	5	8	NRDF000300
30	41.2	37	7.5	10	NRDF100300
32	40	37.5	5	8	NRDF000320
35	43	40.5	5	8	NRDF000350
36	44	41.5	5	8	NRDF000360
40	48	45.5	5	8	NRDF000400
40	50.6	43	5.3	7	NRDF100400
41.28	49.28	46.8	5	8	NRDF000413
45	53	50.5	5	8	NRDF000450
45	55.6	48	5.3	7	NRDF100450
50	58	55.5	5	8	NRDF000500
50	58.6	53	5.3	7	NRDF100500
50	60.6	53	5.3	7	NRDF200500
55	65	62	6.3	10	NRDF000550
55	65.6	58	5.3	7	NRDF100550
56	66	63	6.3	10	NRDF000560
56	66.6	59	5.3	7	NRDF100560
60	70	66	5.3	7	NRDF000600
60	70	67	6.3	10	NRDF100600
60	70.6	63	5.3	7	NRDF200600

d1	D1	D2	L1	L2	订货号
63	73	70	6.3	10	NRDF000630
63	73.6	66	5.3	7	NRDF100630
65	75	72	6.3	10	NRDF000650
65	75.6	68	5.3	7	NRDF100650
70	80	77	6.3	10	NRDF000700
70	80.6	73	5.3	7	NRDF100700
70	82.2	76	7.2	12	NRDF200700
75	83.6	78	5.3	7	NRDF000750
75	85	82	6.3	10	NRDF100750
75	87.2	81	7.2	12	NRDF200750
80	90	87	6.3	10	NRDF000800
80	91	85	7.5	11	NRDF100800
80	92.2	86	7.2	12	NRDF200800
82.6	92.2	85.7	5.3	7.1	NRDF000826
85	93.6	88	5.3	7	NRDF000850
85	97.2	91	7.2	12	NRDF100850
85	98	92	7.5	11.5	NRDF200850
88	100.2	94	7.2	12	NRDF000880
90	100	97	6.3	10	NRDF000900
90	102.2	96	7.2	12	NRDF100900
92	112	102	7	11	NRDF000920
95	107.2	101	7.2	12	NRDF000950
100	110.6	104	5.3	7	NRDF001000
100	112.2	106	7.2	12	NRDF101000

尺寸规格表（第83页）

d1	D1	D2	L1	L2	订货号
100	115	110	9.5	14	NRDF201000
101.6	116.6	111.6	9.5	14	NRDF001016
105	113	110.5	5	8	NRDF001050
105	120	112	7.2	12	NRDF101050
110	122.2	116	7.2	12	NRDF001100
110	125	120	9.5	14	NRDF101100
115	127.2	121	7.2	12	NRDF001150
120	132.2	126	7.2	12	NRDF001200
120	135	130	9.5	14	NRDF101200
125	133	130.8	5.3	7	NRDF001250
125	137.2	131	7.7	12	NRDF101250
125	140	132.6	10.2	16	NRDF201250
125	140	135	9.5	14	NRDF301250
128	143	138	9.5	14	NRDF001280
130	142.2	136	7.2	12	NRDF001300
130	145	137.6	10.2	16	NRDF101300
132	144.2	138	7.2	12	NRDF001320
135	147.2	141	7.2	12	NRDF001350
135	150	145	9.5	14	NRDF101350
140	148.6	143	5.3	7	NRDF001400
140	152.2	146	7.7	12	NRDF101400
140	155	147.6	10.2	16	NRDF201400
140	155	150	9.5	14	NRDF301400
145	153.6	148	5.3	7	NRDF001450
145	160	155	9.5	14	NRDF101450
150	162.2	156	7.7	12	NRDF001500
150	165	157.6	10.2	16	NRDF101500
150	165	158	7.2	12	NRDF201500
150	166	161	8	12	NRDF301500
155	163	160.5	5	8	NRDF001550

d1	D1	D2	L1	L2	订货号
155	167.2	161	7.7	12	NRDF101550
155	175	165	10.2	18	NRDF201550
160	172.2	166	7.7	12	NRDF001600
160	175	167.6	10.2	16	NRDF101600
160	175	170	9.5	14	NRDF201600
165	180	175	5.3	14	NRDF001650
170	180.6	174	7.7	7	NRDF001700
170	182.2	176	9.5	12	NRDF101700
170	185	180	9.5	14	NRDF201700
177	192	187	9.5	14	NRDF001770
180	195	190	9.5	14	NRDF001800
180	200	190	10.2	18	NRDF101800
185	200	192.6	10.2	16	NRDF001850
185	205	195	10.2	18	NRDF101850
190	198.6	193	5.3	7	NRDF001900
190	205	200	9.3	14	NRDF101900
190	210	200	10.2	18	NRDF201900
195	210	205.5	10.2	16	NRDF001950
200	208.6	203	5.3	7	NRDF002000
200	215	210	9.5	14	NRDF102000
200	220	210	10.2	18	NRDF202000
205	213.6	208	5.3	7	NRDF002050
205	220	215	9.5	14	NRDF102050
210	225	220	9.5	14	NRDF002100
210	226	221	8	12	NRDF102100
210	230	220	10.2	18	NRDF202100
212	232	225.5	12.5	18	NRDF002120
220	235	227.6	10.2	16	NRDF002200
220	240	230	10.2	18	NRDF102200
220	240	233.5	12.5	18	NRDF202200

尺寸规格表（第84页）

d1	D1	D2	L1	L2	订货号
225	240	235	9.5	14	NRDF002250
225	245	235	10.2	18	NRDF102250
230	238.6	233	5.3	7	NRDF002300
230	245	240	9.5	14	NRDF102300
230	246	240.7	7.5	12	NRDF202300
230	250	240	10.2	18	NRDF302300
235	255	245	10.2	18	NRDF002350
240	255	250	9.5	14	NRDF002400
240	260	250	10.2	18	NRDF102400
240	260	253.5	12.5	18	NRDF202400
245	265	258.5	12.5	18	NRDF002450
250	270	260	10.2	18	NRDF002500
250	270	263.5	12.5	18	NRDF102500
255	270	265	9.5	14	NRDF002550
260	275	270	9.5	14	NRDF002600
260	280	270	10.2	18	NRDF102600
265	280	272.6	10.2	16	NRDF002650
265	285	275	10.2	15	NRDF102650
270	278.6	273	5.3	7	NRDF002700
270	286	280.7	7.5	12	NRDF102700
270	290	280	10.2	15	NRDF202700
275	295	285	10.2	15	NRDF002750
280	295	290	9.5	14	NRDF002800
280	300	290	10.2	15	NRDF102800
285	300	295	9.5	14	NRDF002850
285	305	298.5	12.5	18	NRDF102850
288	308	301.5	10.2	15	NRDF002880
290	310	303.5	12.5	18	NRDF002900
295	315	308.5	12.5	18	NRDF002950
300	316	310.7	7.5	12	NRDF003000

d1	D1	D2	L1	L2	订货号
300	320	310	10.2	18	NRDF103000
300	320	313.5	12.5	18	NRDF003000
305	325	318.5	12.5	18	NRDF003050
320	340	330	10.2	18	NRDF003200
325	345	335	10.2	18	NRDF003250
330	346	340.7	7.5	12	NRDF003300
335	355	345	10.2	18	NRDF003350
340	360	350	10.2	18	NRDF003400
350	370	360	10.2	18	NRDF003500
355	375	365	10.2	18	NRDF003550
360	380	370	10.2	18	NRDF003600
370	390	380	10.2	18	NRDF003700
370	390	383.5	12.5	18	NRDF103700
380	400	393.5	12.5	18	NRDF003800
390	410	400	10.2	18	NRDF003900
390	410	403.5	12.5	18	NRDF103900
395	415	405	10.2	18	NRDF003950
40	420	410	10.2	18	NRDF00400
415	435	425	10.2	18	NRDF004150
445	465	455	10.2	18	NRDF004450
455	475	465	10.2	18	NRDF004550
460	490	475	15	25	NRDF004600
470	490	480	10.2	18	NRDF004700

备注：未列出型号，如有需要请咨询新旭密封团队。
